Node - Daedalus

Dedicated node for hardware testing (FPGA / PCIe / NIC)

Linux Intel Core i5 Xilinx ZYNQ-7000 Xilinx Kintex UltraScale+ Verilog Vivado

For the full cluster architecture, see the Home Server Infrastructure Overview.

At a Glance

Item Value
Role Hardware Test (FPGA · PCIe · NIC)
Hardware Custom PC, Intel Core i5-4670, 8 GB RAM, 2 TB HDD
Attached devices Xilinx ZYNQ-7000 FPGA & Xilinx Kintex UltraScale+ FPGA boards
OS / Hypervisor Ubuntu (bare metal, no hypervisor)
Public ports None
In service since 2025 onward
Current status Running (powered on per experiment)

One-line summary: Daedalus is a bare-metal node kept separate so that physical gear like FPGA and PCIe is never mixed with other workloads.

What Runs Here

Daedalus is not an always-on service node; it is the node used for hardware testing.

Attached devices / tools

Area Setup

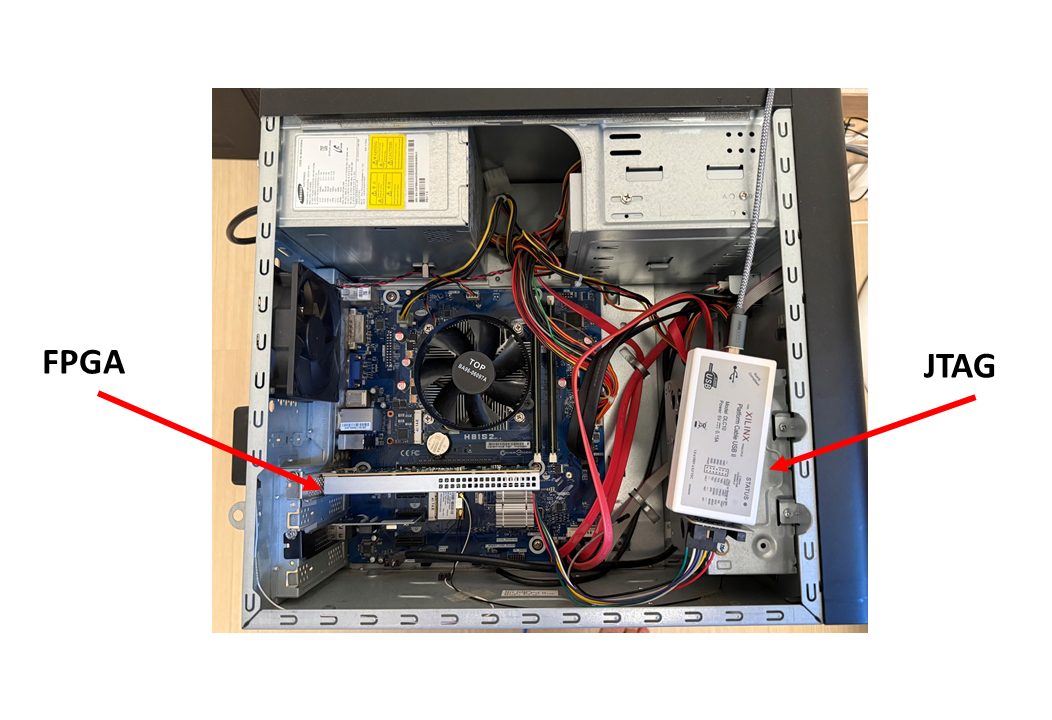

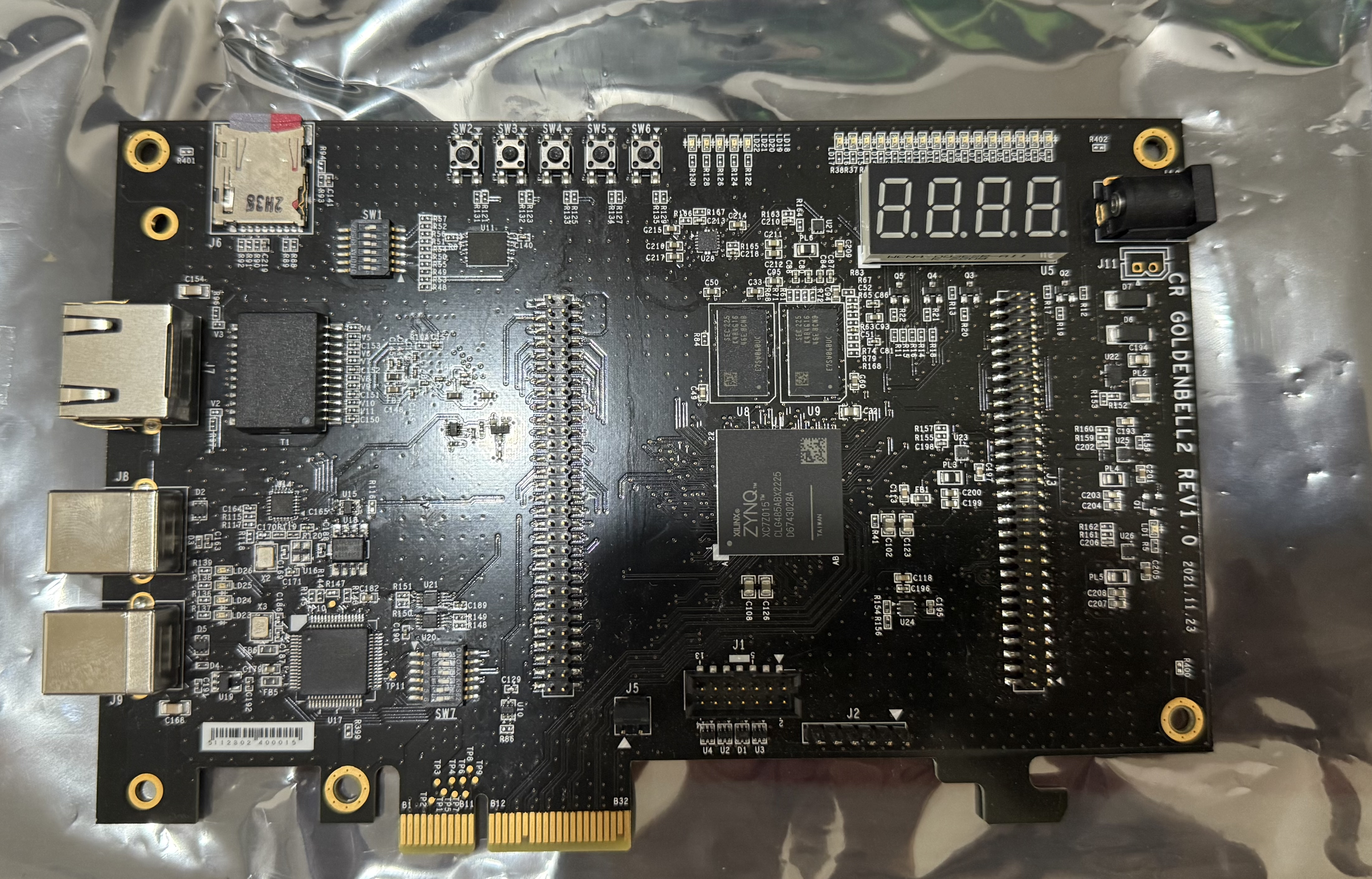

FPGA boards Xilinx ZYNQ-7000 series (USB-JTAG), Xilinx Kintex UltraScale+ FPGA (JTAG)
Host OS Ubuntu 18.04 LTS
Network WireGuard client to reach the Hades / Athena internal networks

Workflow

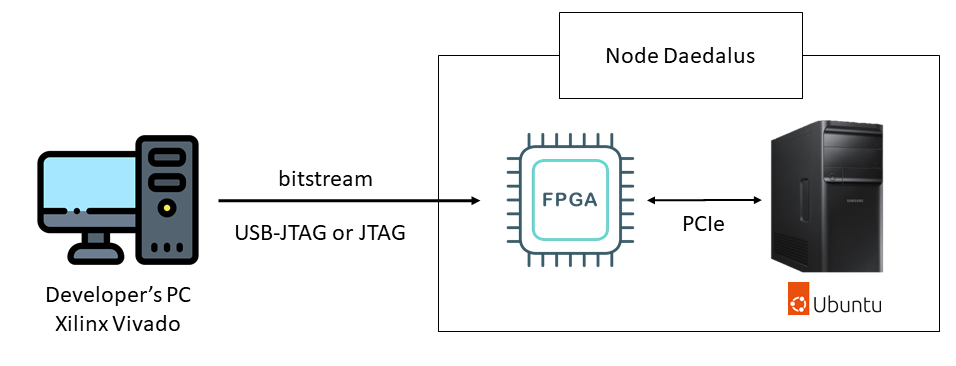

FPGA build sequence image

Key Decisions

- Why bare-metal Ubuntu (no hypervisor)

Unlike Athena and Hades, Daedalus intentionally has no hypervisor.

  • Avoiding USB-JTAG / PCIe passthrough complexity. A hypervisor adds another step to hand USB/PCIe devices precisely to a guest, and vendor tools often assume devices visible directly on the host, which makes debugging harder.
  • Daedalus’s value ≠ availability. It does not need to be always-on, so the benefits of VM isolation/migration are small.

- Why Ubuntu

Xilinx Vivado and the ZYNQ board drivers run most stably on Ubuntu LTS, and most vendor docs and community resources are written against Ubuntu. CentOS/RHEL are officially supported too, but for a personal environment Ubuntu’s resource accessibility made it the better fit.

Operations & Incidents

Routine operations

  • Boot only when running an experiment; otherwise powered off (less power/noise)
  • Copy outputs (.bit, logs, waveform captures) to the NAS backup path when an experiment ends

Incident — a kernel-version issue prevented NIC detection

Situation: Ubuntu 18.04 LTS’s 4.x kernel did not match the kernel features required by the NIC/cndm driver, causing compatibility issues during NIC detection and kernel-module builds.

How I noticed: while tracing the build failure, I found a compatibility problem between the running kernel version and the device driver / kernel headers.

Response:

  1. Kernel update. Updated the Ubuntu 18.04 LTS kernel from 4.x to 5.4.0-150.
  2. Reboot and version check. Rebooted the system remotely, then reconnected over SSH to confirm it booted into the new kernel.
  3. Device and build-environment check. Confirmed the NIC enumerated correctly on the 5.4 kernel, installed the matching kernel headers, and retried the cndm module build to produce cndm.ko successfully.

Lesson: when building hardware drivers or kernel modules, you have to align not only the OS version but the running kernel, the kernel headers, and the device driver together.

Limitations & Next Steps

What’s missing now

  • With no hypervisor, the experiment environment is tied directly to the host OS — touching drivers/kernel affects the whole host (weak per-experiment isolation)
  • The kernel/driver environment is not recorded in a reproducible way — the setup process, as in the NIC incident, is not documented
  • USB-JTAG/PCIe setup depends on physical connections — devices cannot be swapped/reconnected remotely

What I’ll improve next

  • Pin the Vivado/driver build environment to an image/script so the “kernel 5.4 + specific headers + driver” combination becomes reproducible
  • Keep an experiment notebook of device connections, kernel parameters, and build steps so the next test can reproduce the same state
